apcranswick Posted February 6, 2011 Report Share Posted February 6, 2011 I am trying to use pan & zoom in some of my slides, but find if I use a mode of other than linear, the pan or zoom does not start and end at the appropriate keyframe, but works from the beginning of the slide to the end of the slide, including transistion effects. I have tried various combinations of modes for the three options of pan, zoom and rotate and the animation only seems to work from the appropriate keyframes if all three are set to linear. I would really like to be using smooth. A search in the various tutorials and forums has yielded no clues. Is there some setting I am missing? Quote Link to comment Share on other sites More sharing options...
davegee Posted February 6, 2011 Report Share Posted February 6, 2011 If you have more than two keyframes in the zoom you need to go into O&A > Animation > Click on Zoom Linear (or Smooth etc) and then Setting Up.Click on "Seperate Here" to change to "Glue Here".That should sort it.DG Quote Link to comment Share on other sites More sharing options...
fh1805 Posted February 6, 2011 Report Share Posted February 6, 2011 To try and add clarification to DG's post:Linear works across all keyframes - because it is linear. The other options work between an adjacent pair of key frames. If your object has multiple keyframes then you need to do as DG advises, and separate the keyframes so that you can then specify which mode to use between each pair.regards,Peter Quote Link to comment Share on other sites More sharing options...
davegee Posted February 6, 2011 Report Share Posted February 6, 2011 Not to labour an old discussion but it would work far better for me if "GLUE HERE" were to say "SEPERATED" and "SEPERATE HERE" were to say "GLUED".But that's just my opinion - no need to discuss further.DG Quote Link to comment Share on other sites More sharing options...

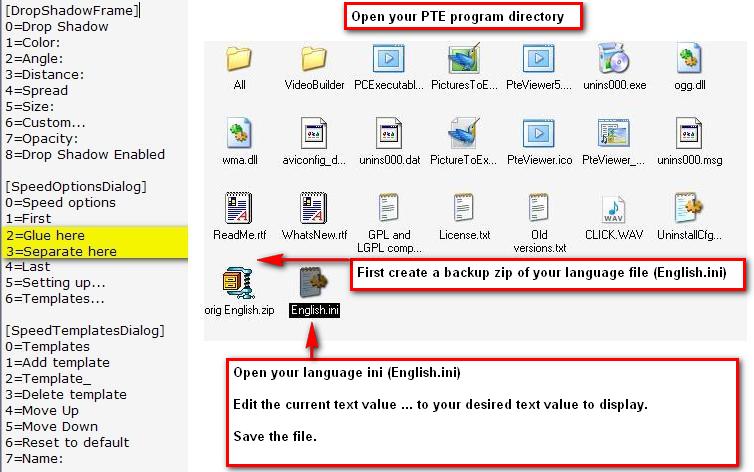

nobeefstu Posted February 6, 2011 Report Share Posted February 6, 2011 DG,Not to labour an old discussion but it would work far better for me if "GLUE HERE" were to say "SEPERATED" and "SEPERATE HERE" were to say "GLUED".For special and personal needs to suit your preferences ... its possible to edit the PTE language ini file (English.ini) within the program directory to display text more to your likeing.I dont recommend this file editing for non-experienced PC and PTE users ... but I often edit it to suit my particular needs and preferences.See image attachment. Quote Link to comment Share on other sites More sharing options...
davegee Posted February 6, 2011 Report Share Posted February 6, 2011 The more I think about it Stu, my preference would be for a multiple choice arrangement so that ticking SEPERATE would untick GLUE.It's not a big deal, but I've never felt as comfortable with it as others seem to be.DG Quote Link to comment Share on other sites More sharing options...
apcranswick Posted February 6, 2011 Author Report Share Posted February 6, 2011 To try and add clarification to DG's post:Linear works across all keyframes - because it is linear. The other options work between an adjacent pair of key frames. If your object has multiple keyframes then you need to do as DG advises, and separate the keyframes so that you can then specify which mode to use between each pair.regards,PeterMany thanks to the two of you for your help. I'm still trying to sort the logic in my mind, but I can now get the system working, even though it seems a bit quirky.Thanks,Alex Quote Link to comment Share on other sites More sharing options...
Barry Beckham Posted February 7, 2011 Report Share Posted February 7, 2011 I am trying to use pan & zoom in some of my slides, but find if I use a mode of other than linear, the pan or zoom does not start and end at the appropriate keyframe, but works from the beginning of the slide to the end of the slide, including transistion effects. I have tried various combinations of modes for the three options of pan, zoom and rotate and the animation only seems to work from the appropriate keyframes if all three are set to linear. I would really like to be using smooth. A search in the various tutorials and forums has yielded no clues. Is there some setting I am missing? AlexI hope I havn't misunderstood your question. (but works from the beginning of the slide to the end of the slide, including transistion effects) You can have your animation start and stop at any point, either after your image is fully on screen and stop the animation before the next transition, by clicking and sliding the blue start and end flags. See screen grab Quote Link to comment Share on other sites More sharing options...
Lin Evans Posted February 7, 2011 Report Share Posted February 7, 2011 Hi Alex,Go back and set everything to "linear." Then change to "smooth" on one of the keyframes, then go to "setting up" and click each of the "seperate here" points. This will then set all keyframes to smooth for that object or slide. If you don't do this, the results may be uncertain. It's best to program everything in "linear" then after all the timings, etc., are correct, go set up "smooth" and use the "setting up," etc. Do this for all of the animation possibilities to be on the safe side. Even if you don't have any "rotate" or "pan" if you "accidentally" move an image during the size, for example, the "pan" will be affected. If you accidentally rotate only a degree, the "rotate" will be affected. There is no "penalty" for setting smooth on all three even if they are not used in your animation. It's safe "insurance" against unexpected results.Best regards,LinMany thanks to the two of you for your help. I'm still trying to sort the logic in my mind, but I can now get the system working, even though it seems a bit quirky.Thanks,Alex Quote Link to comment Share on other sites More sharing options...
